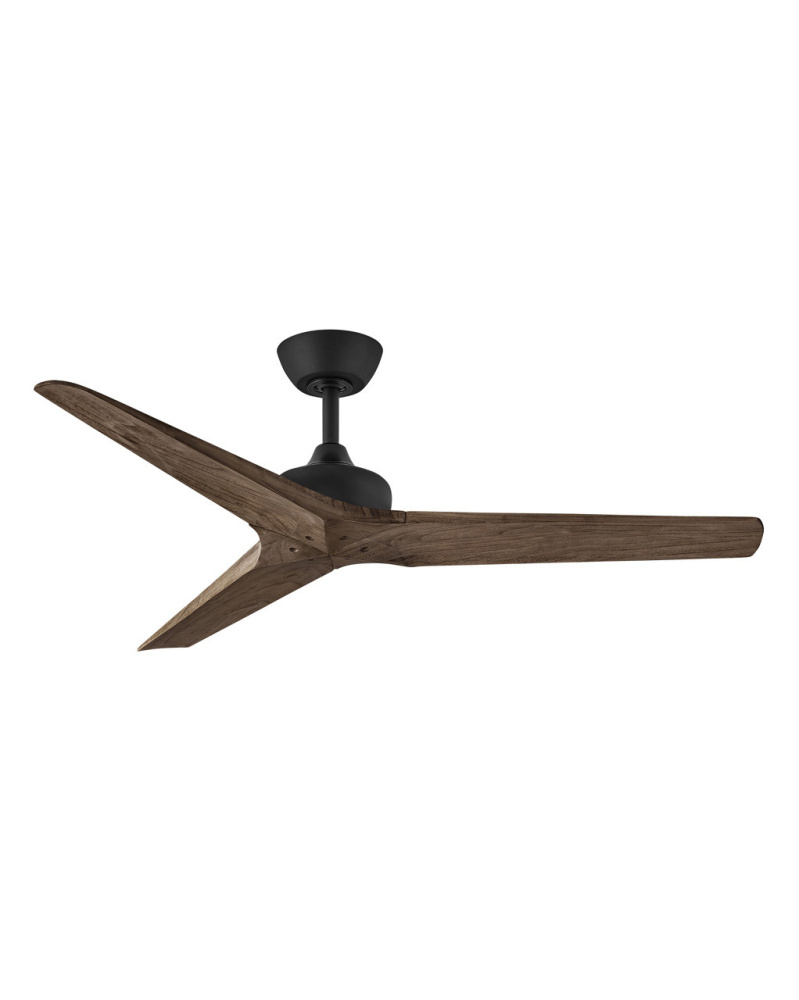

Chisel 52" Smart Fan (9Q3LG)
Built with a sleek, carefully crafted design, Chisel redefines dramatic style. Sturdy solid wood blades are available in a variety of sophisticated finishes to complement modern interiors and outdoor settings. Damp rated. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.
Product Specification
Item #
9Q3LG
Dimensions
Height: 13.75"
Width: 52.00"
Length: 52.00"
Additional product details
Category
Fans
Subcategory
Ceiling Fans
Finish
Black
Style
Modern
Option
Title 24
, Damp Rated
, Prop 65
Voltage
100-120
Number of Blades
3 Blades
Subfinish
Matte Black
Location Rating
Damp Rated
Category
Fan
Finish
Matte Black
Style
Modern
Family
Chisel
Voltage
120 V
Air Flow Efficiency
6292
Amperage
0.53
Blade Finish
Walnut
Blade Pitch
13
Blade Span
52
Blades Included
Yes
Canopy
6 Dia. x 2.5 D
Introduction Date
01/01/2021
Light Kit Included
No
Material
Steel
Motor Size
165 x 21
Motor Type
DC
Ship Carton Height
10.1
Ship Carton Length
33.4
Ship Carton Width
16
Ship Weight
25.3
Vendor Ship Method
Parcel
Weight
23.1
Airflow Avg
4004
AMPS Avg
0.29
Avg Energy Use
25
Blade Material
Wood
Blade Options Available
No
Blade To Ceiling Height
12
Blades Reversible
No
Bulb Included
No
Control Type
HIRO Control - 6 Speed Reversing
Country of Origin
Taiwan
Dual Mount
No
Efficiency Avg
160
Efficiency High
166
Energy Cost Avg
7
Energy Cost High
10.65
Energy Use High
38
Fan Control
Yes
Flush Mount Fan
No
Light Kit Adaptable
No
Location Rating
Damp Rated
Motor Fan Speed
6
Number of Blades
3
Operating Frequency
60
Prop 65 Description
CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. for more information go to www.P65Warnings.ca.gov
Receiver Included
Yes
Reversing Control
Yes
RPMS Avg
130
RPMS High
210
Safety Rating
ETL Approved, C-US Approved
Single Power Switch
Yes
Slope
20
Sloped Ceiling Adaptable
Yes
Title 24
No
WIFI Control Included
Yes
WIFI Control Optional
No
Other Details:
- Blades, controls, switches, capacitors and hardware carry a 1-year warranty
- Bold silhouette with dramatic details creates a modern statement
- Fan Control included, HIRO Control - 6 Speed Reversing
- Fans should be installed at a minimum of 7 feet from the floor
- For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
- Motor carries a lifetime warranty
- Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.
- This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
- This item may be hung on a sloped ceiling
- WiFi compatible with included fan control
Finish
Additional options that would change other selections
Blade Finish
Additional options that would change other selections
Call for Price
BASE PRICE:
$
649
00
/
/ 1
($649.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer may be Out Of Stock.
- Item may be on Backorder until 05/26/2025 or later.
