Chisel 44" Smart Fan
Image may not reflect selected features

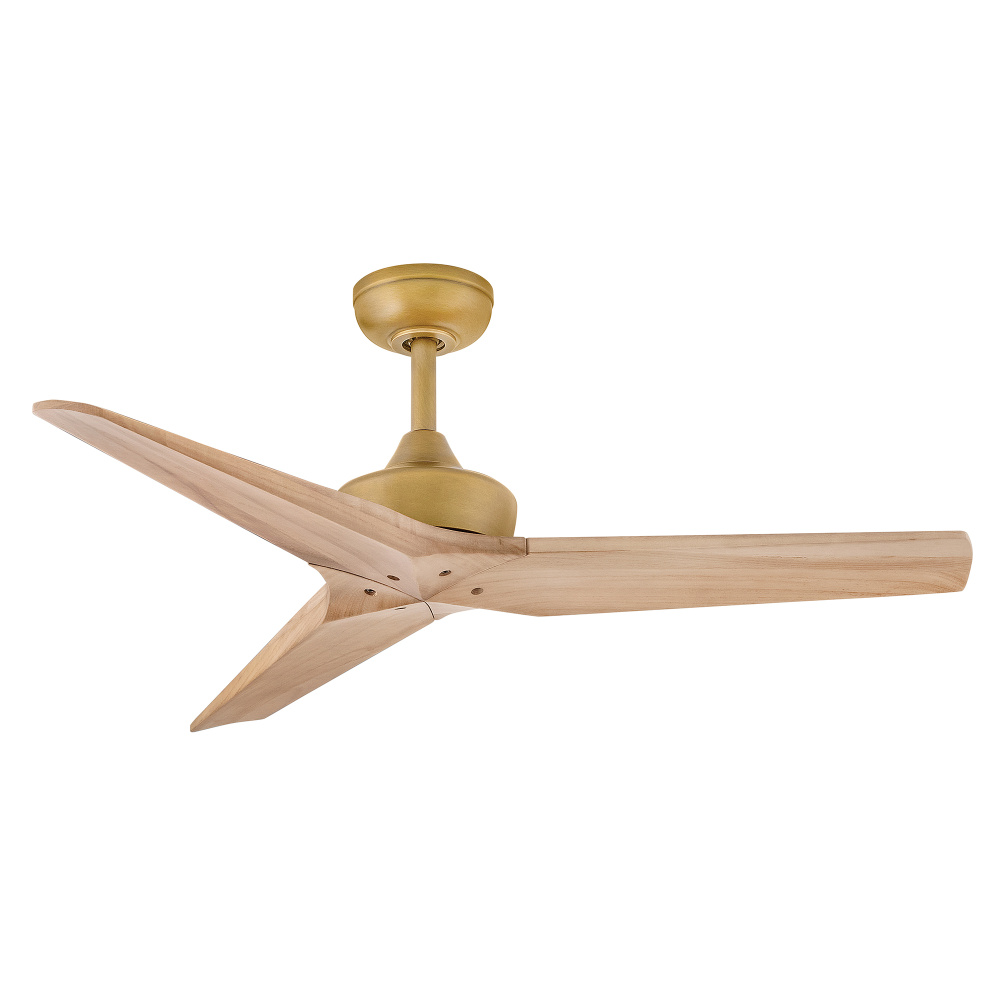

Chisel 44" Smart Fan (A0AL1)
Built with a sleek, carefully crafted design, Chisel redefines dramatic style. Sturdy solid wood blades are available in a variety of sophisticated finishes to complement modern interiors and outdoor settings. Damp rated. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.
Downloads
Product Specification
Item #
A0AL1
Dimensions
Height: 12.00"
Width: 44.00"
Length: 44.00"
Additional product details
Finish
Brass
Style
Modern
Option
Damp Rated
Voltage
100-120
Location Rating
Damp Rated
Smart Home
Yes
Category
Fan
Finish
Heritage Brass
Style
Modern
Family
Chisel
Voltage
120 V
Air Flow Efficiency
5032
Amperage
0.36
Blade Finish
Natural
Blade Pitch
18
Blade Span
44
Canopy
6 Dia x 2.5 D
Introduction Date
01/01/2026
Light Kit Included
No
Material
Steel
Motor Type
DC
Ship Carton Height
10.5
Ship Carton Length
33.5
Ship Carton Width
16
Ship Weight
18
Vendor Ship Method
Parcel
Airflow Avg
3093
AMPS Avg
0.21
Avg Airflow Efficiency
200
Avg Energy Use Watts
16
Blade Material
Wood
Blade Sweep
44
Blade To Ceiling Height
12
Blades Reversible
No
Bulb Included
No
Control Type
HIRO Control - 6 Speed Reversing
Country of Origin
China,Taiwan
Efficiency High
151
Energy Cost Avg
4
Energy Cost High
9
Energy Use High
16
Fan Control
Yes
Flush Mount Fan
No
Install Sloped Ceiling
Yes
Light Kit Adaptable
No
Light Kit Included Removeable
No
Location Rating
Damp Rated
Motor Fan Speed
6
Motor Name
165 x 25
Number of Blades
3
Operating Frequency
60
Prop 65 Description
CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Receiver Included
Yes
Reversing Control
Yes
RPMS Avg
170
RPMS High
289
Safety Rating
ETL Approved
Slope Degree
20
Title 24
No
Uplight 2
No
WIFI Control Included
Yes


Other Details:
  • Bold silhouette with dramatic details creates a modern statement
  • Can be hung on a sloped ceiling
  • Control your fan's power, light, speed, direction, and so much more from the Hinkley Home Automation app
  • Damp rated fans are ideal for fully covered outdoor areas, bathrooms, garages, and sunrooms
  • Fan Control included, 6 Spd HIRO:R
  • Fan Control included, HIRO Control - 6 Speed Reversing. All-in-one HIRO remote controls power, speed, direction, and lighting; use as a wall control or portable remote
  • FAN: 6" Rod Included, FAN: 7ft from floor, Install Sloped Ceiling
  • Fans should be installed at a minimum of 7 feet from the floor
  • Motor carries a lifetime warranty
  • This item includes a 6" down rod (other lengths of down rods are available)
  • WiFi Enabled Smart Fan is compatible with your home’s WiFi network
Call for Price
Qty:
BASE PRICE:
$
649
00
/ / 1
($649.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer may be Out Of Stock.
  • Item may be on Backorder until 02/27/2026 or later.
